Toyota Orange Dongle Remote Programming

Step 1:
Insert key into ignition and turn to on position

Step 2:

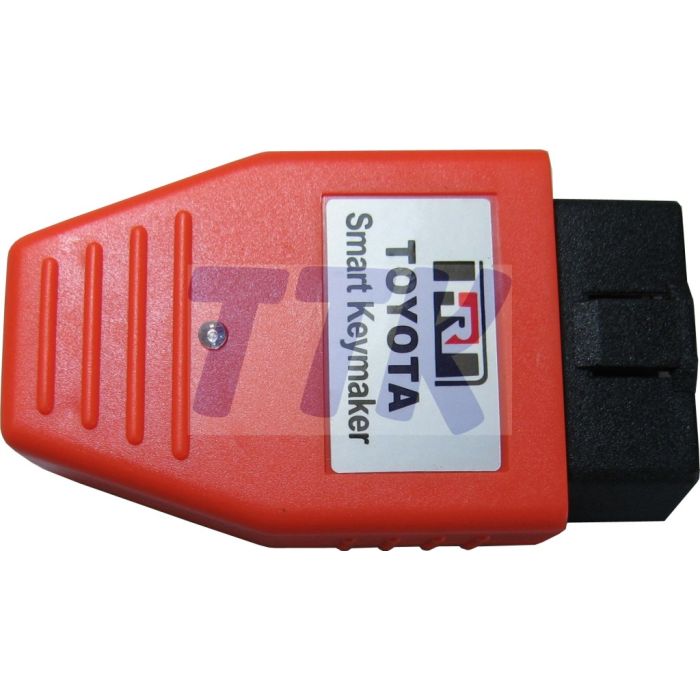

Plug in orange reset tool into OBD

Step 3:Dongle will beep once.

Step 4:
Within 30 seconds it will beep again 3 times

Step 5:
Wait approximately 1 minute and it will beep for 5 seconds

Step 6:
Car is now in auto registration mode. Immo light will now be on solid.

Step 7:
Turn key off and unplug dongle

Step 8:
Insert first master into ignition and turn to on position for 5 seconds then turn off and remove.
Immo light will flash and come back on solid

Step 9:
Repeat for a second master key if required. Immo light will flash and come back on solid

Step 10:
Only 2 master keys can be enrolled in auto registration mode

Step 11:
After you have finished cycling the key/s turn the ignition to quickly on then off five times

Step 12:
Once the key is removed, Immo light will now be flashing
